Key Features
Why choose FELIX BIOprinter
A fully packed 3D printing platform, with features to accelerate your research.
Easy to Use
Accuracy
Robust System
Modular System
Compact
Specs
Technical specifications
Layer Resolution
to 50 microns
Build Plate
Aluminium sandwich plate with steel flexplate or optionally glass plate
Print Head
Dual motorized syringe operation
Syringe Specs
5 ml Luer lock or luer slip syringe
Build Speed
Recommended build speed is 20 mm/s. Speed depends on material viscosity
Typical Print x,y,z Accuracy
± 0.05 mm for sizes below 20 mm
Syringe Min/Max Print Temperatures
4–75 ˚C
XYZ Resolution
XY: 1.6 microns, Z: 0.15 micron
Dimensions & Weight
430 × 390 × 550 mm, 11.5 kg
Build Volume
XYZ = 130 × 210 × 130 mm
Extrusion Width
Greater than 0.1 mm, depending on nozzle size
Extrusion Force of Syringe
350 N max

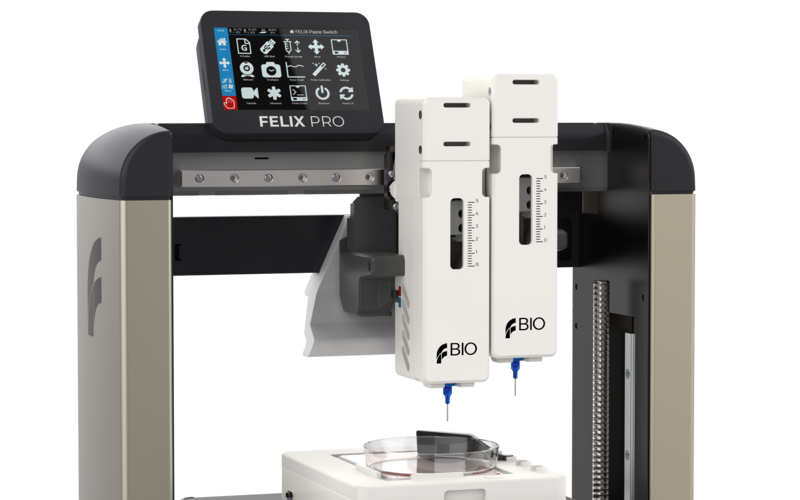

Innovative dual print head system
- Motorized extrusion: Enables precise extrusion regardless of temperature and viscosity.
- Syringe heating and cooling: With a range from 4°C up to 75°C when printing at room temperature.
- Dual material printing: The active extruder is positioned lower than the idle extruder, enabling dual extrusion within a petri dish.

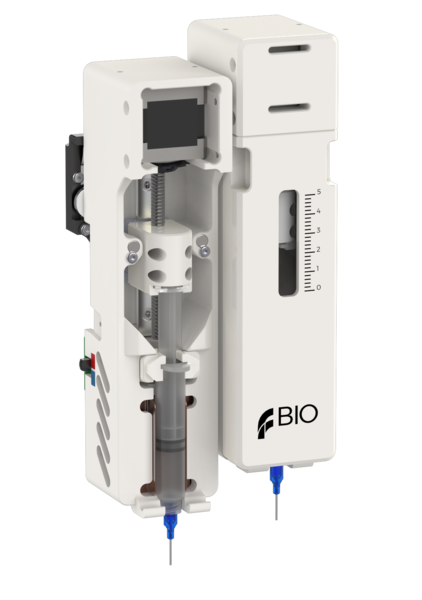

Open Syringe system
- Quickly swap syringes: Change between extruders and materials rapidly, taking only seconds.
- Use standardized syringes: The extruder features a smart adjustment mechanism, allowing it to accommodate luer lock syringes of different brands with capacities of 1ml and 5ml.
- Material flow detection: The printer has the capability to detect an empty syringe or a clogged nozzle, enabling it to automatically enter pause mode.
- High extrusion force: With an extrusion force of 350 Newton or 35 Kg, the printer empowers you to print with a diverse array of materials.

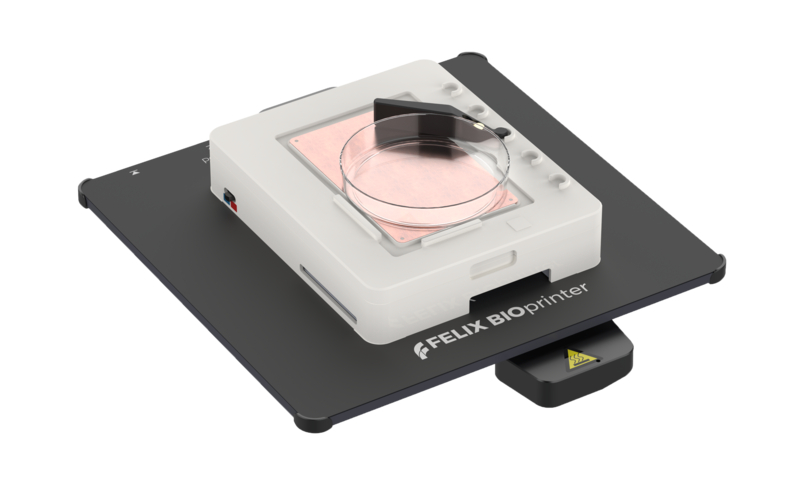

Bed module (optional)
The standard heated build plate can reach temperatures of up to 80°C. Additionally, our cooled bed module provides the following capabilities:
- Fixing several sizes of petri dishes, Well plates and Slides
- Temperature control within a range of 4°C to 60°C (When printing at room temperature)

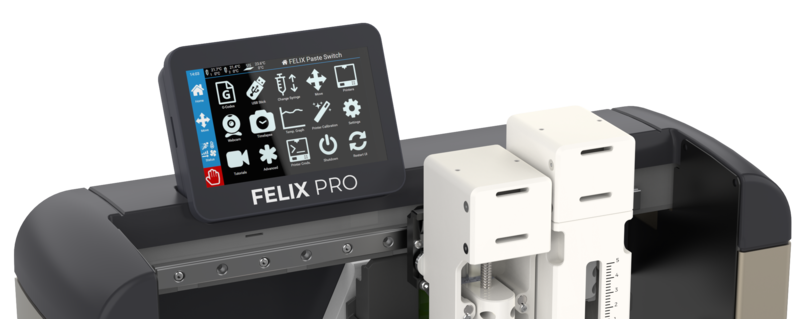

Touchscreen interface
The printer hosts a powerful touchscreen, control the printer directly or via the convenient web interface.
- Intuitive interface
- Manage print files
- Monitor temperatures
- Webcam
- USB stick
- Access via web browser

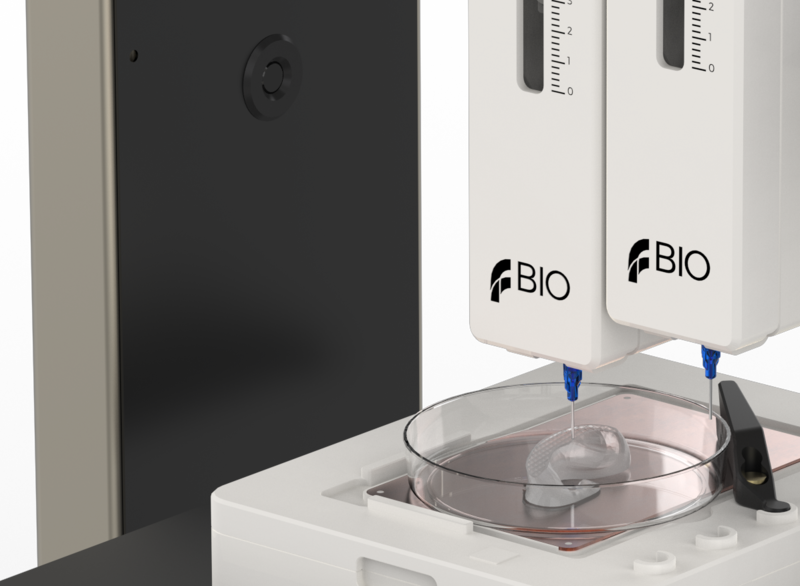

Webcam monitoring
The 2 MP webcam camera allows you to:
- Follow the print process remotely via the web interface
- Create timelapses
- (Optionally) You can connect a USB microscope for research and scientific applications.
Innovative dual print head system
- Motorized extrusion: Enables precise extrusion regardless of temperature and viscosity.
- Syringe heating and cooling: With a range from 4°C up to 75°C when printing at room temperature.
- Dual material printing: The active extruder is positioned lower than the idle extruder, enabling dual extrusion within a petri dish.
Open Syringe system
- Quickly swap syringes: Change between extruders and materials rapidly, taking only seconds.
- Use standardized syringes: The extruder features a smart adjustment mechanism, allowing it to accommodate luer lock syringes of different brands with capacities of 1ml and 5ml.
- Material flow detection: The printer has the capability to detect an empty syringe or a clogged nozzle, enabling it to automatically enter pause mode.
- High extrusion force: With an extrusion force of 350 Newton or 35 Kg, the printer empowers you to print with a diverse array of materials.
Bed module (optional)
The standard heated build plate can reach temperatures of up to 80°C. Additionally, our cooled bed module provides the following capabilities:
- Fixing several sizes of petri dishes, Well plates and Slides
- Temperature control within a range of 4°C to 60°C (When printing at room temperature)
Touchscreen interface
The printer hosts a powerful touchscreen, control the printer directly or via the convenient web interface.
- Intuitive interface
- Manage print files
- Monitor temperatures
- Webcam
- USB stick
- Access via web browser
Webcam monitoring
The 2 MP webcam camera allows you to:
- Follow the print process remotely via the web interface
- Create timelapses
- (Optionally) You can connect a USB microscope for research and scientific applications.

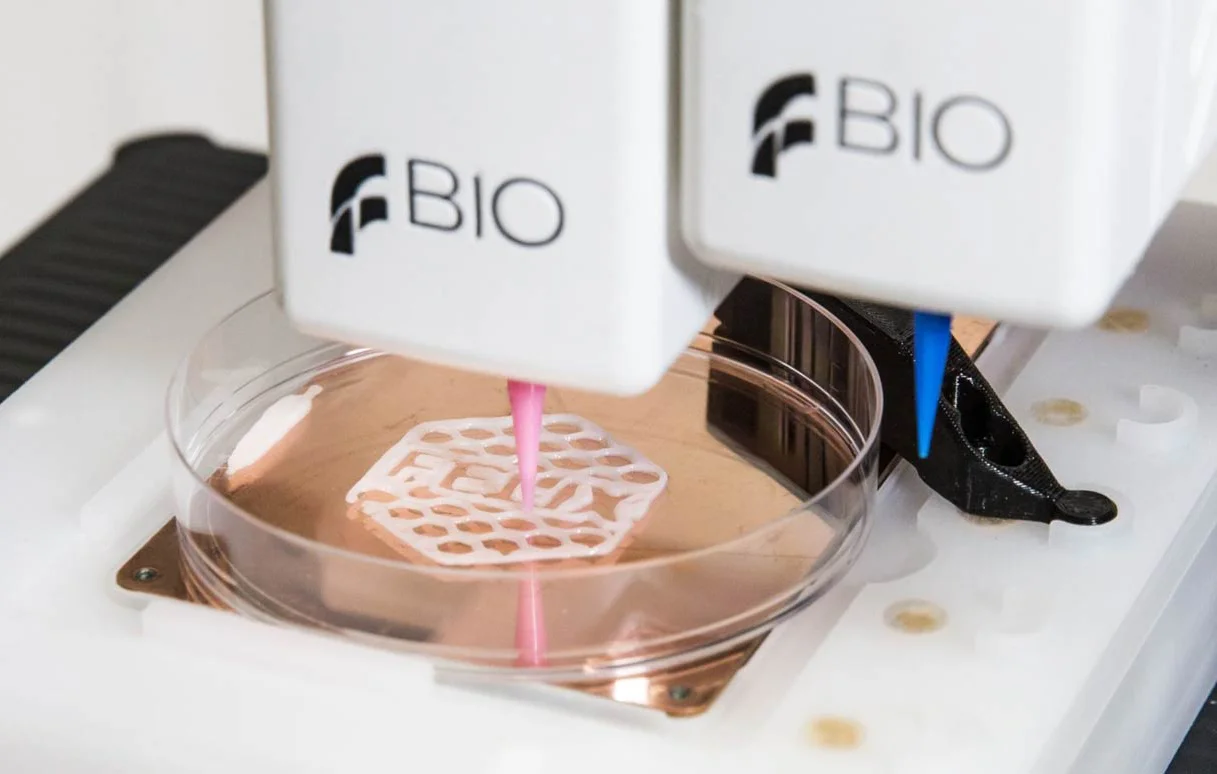

Materials
Compatible with a wide range of materials
You have the capability to employ any substance with a viscosity not exceeding 1000 Pascal-seconds. For the purpose of multilayer 3D printing, it is recommended to utilize a minimum viscosity of 50 Pascal-seconds.
Within our inventory, we have a comprehensive array of materials meticulously chosen based on the esteemed recommendations provided by our valued partners.
Get the FELIX BIOprinter
Accelerate your research with extrusion-based bioprinting. Get expert guidance on setup and the right configuration for your lab.
