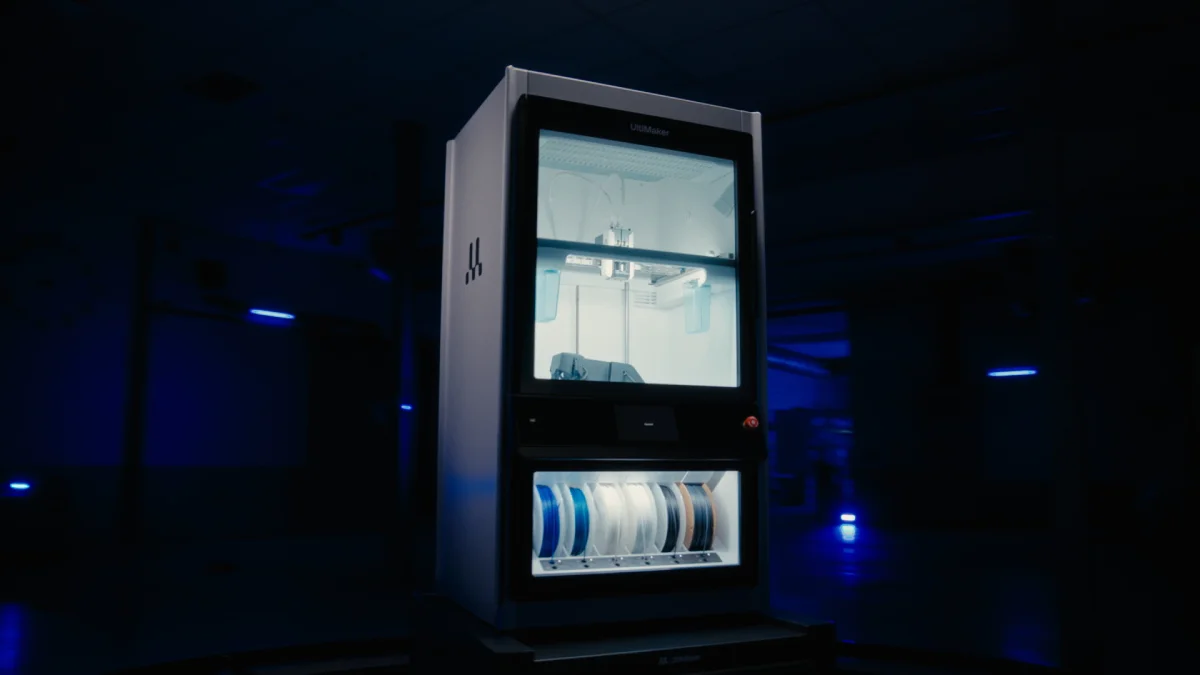

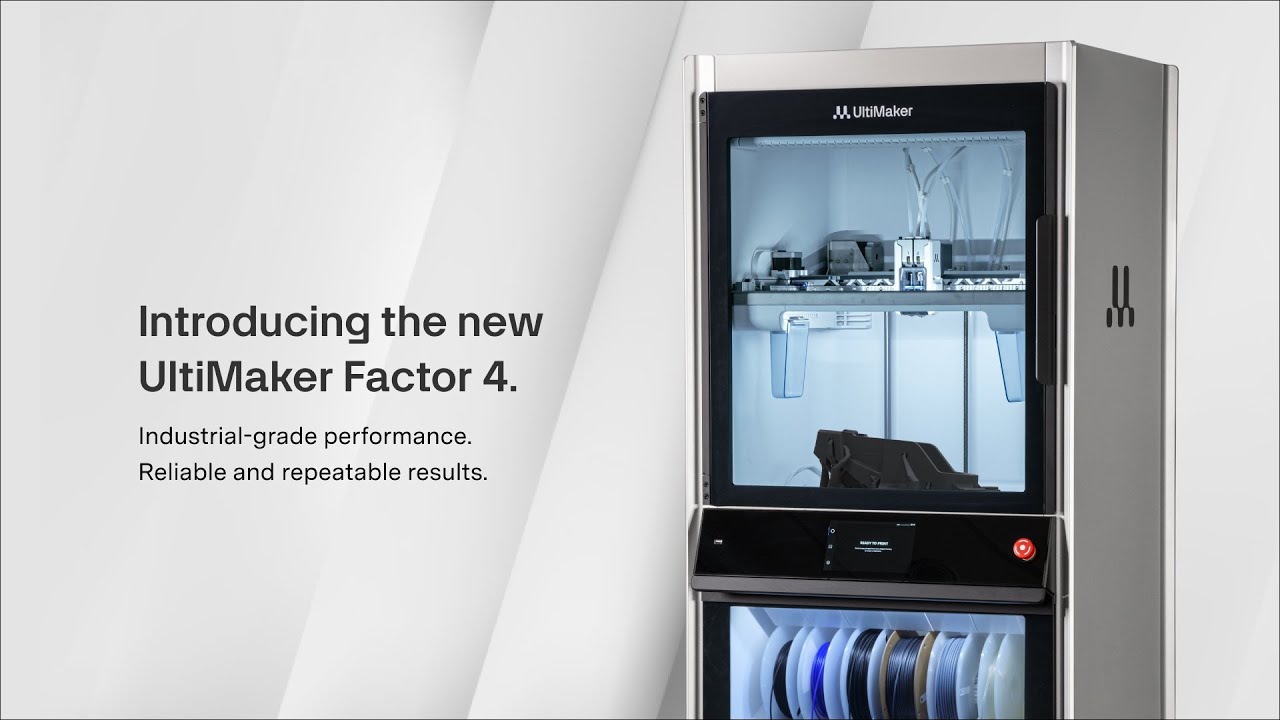

UltiMaker Factor 4
Industrial-grade performance. Reliable and repeatable results.
UltiMaker Factor 4, our new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running. With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.
See what sets Factor 4 apart
Industrial-grade reliability, built for the factory floor.
Built for the factory floor.
Reliability, repeatability and validation.
Achieve more with FDM 3D printing.
A future-proof investment.
Specs
Technical specifications
Build volume
The physical space inside the UltiMaker Factor 4 that can be used for single or dual extrusion 3D printing.
330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
Assembled dimensions
The 3D printer's dimensions.
695 x 605 x 1287 mm (27.5 x 24 x 51 inches)
Print technology
This is the process of depositing layers of filament, one on top of the other, to build up shapes and models. It is a form of additive manufacturing technology and the process used by all UltiMaker 3D printers.
Fused Deposition Modeling (FDM)
Compatible filament diameter
The filament diameter that achieves optimal results on Factor series 3D printers.
2.85 mm
Weight
The net weight of the 3D printer.
120 kg (265 lbs)
Maximum power output
The peak power output that the printer can reach – usually when the heated bed and hot ends are heating up.
600 W
Materials
UltiMaker Factor 4 works with 200+ materials including the following:
PPS CF
ABS
Nylon
PC
Tough PLA
PLA
PETG
CPE
CPE+
TPU 95A
PP
Built on more than 13 years of UltiMaker legacy – dedicated to innovation, accessibility, and openness.
Integrated HEPA filter
Independently tested to remove up to 95% of ultrafine particles to increase air quality peace of mind. The fully enclosed build chamber also boosts print quality.
Onboard structural integrity validation
After every print job, receive an in-depth report on extrusion parameters deviations from nominal values, their locations, and their severity in the 3D model.
Automated material handling with low humidity storage
Automatic pre-loading and spool switching (up to 6) with RH < 15% on any external conditions.
Emergency stop button
A conspicuous red STOP button ensures easy and safe operation should there be a need to immediately halt printing.
7-inch capacitive touchscreen
Mounted higher to give a better view of the first layers when remote monitoring. Monitor your print in high resolution remotely via UltiMaker Digital Factory.
H-bridge Gantry
H-bridge gantry and direct drive head enable rapid dual material printing. Factor 4 is capable of reaching up to 340°C on its print cores, 70°C on the print chamber and 120°C on its heated bed.
Always up to date.
With dual onboard processors, there is plenty of computing headroom for planned and even unplanned future updates.
Featured accessories and materials
UltiMaker PPS Carbon Fiber
The new UltiMaker PPS CF allows you to use this high-temperature composite to replace less-demanding complex steel parts and manufacturing aids with an excellent surface finish.
UltiMaker HT print core
Factor 4 raises the temperature up to 340 °C using the HT print core. This means that you can now 3D print higher temperature-resistant and durable materials with more confidence.
Factor 4 Printer Station
Tailor-made for Factor 4. Anti-tilting architecture and stability, lock-in mechanisms to fix 3D printer to cabinet.
Get UltiMaker Factor 4
Bring industrial-grade 3D printing into your factory workflow. Get expert guidance on setup, materials, and the right configuration for your production needs.
