Key Features
Solve big problems with large-scale parts.
Or print multiple parts in one job, so you can accelerate product development or keep production running.
Big Parts
Blazing fast
Stunning Parts
Versatile
Reliable
Intuitive
Specs
Technical specifications
Technology
Masked Stereolithography (MSLA)
Printer Engine
Low Force Display™ (LFD)
Light Source
Backlight Unit with integrated air cooling.
145 uniform-wavelength LEDs, plano-convex lens array 405 nm optical wavelength 16 mW/cm² optical power intensity 46 µm pixel size
Maximum Print Speed
Under optimal conditions.
80 mm/hr 3.1 in/hour
Typical Print Speed
Across all materials.
Average: 24 mm/hour (0.9 in/hour) Range: 20–35 mm/hour (0.8–1.4 in/hour)
Reliability
Testing in progress.
Dimensional Tolerances (XY)
1–30 mm features: ±0.15% (lower limit: ±0.02 mm) 31–80 mm features: ±0.3% (lower limit: ±0.06 mm) 81–150 mm features: ±0.3% (lower limit: ±0.15 mm)
Surface Accuracy (Restorative Models)
On average with Precision Model Resin.
99.9% of surfaces within 100 µm of CAD model 96.7% of surfaces within 50 µm of CAD model 71.4% of surfaces within 25 µm of CAD model
How it works

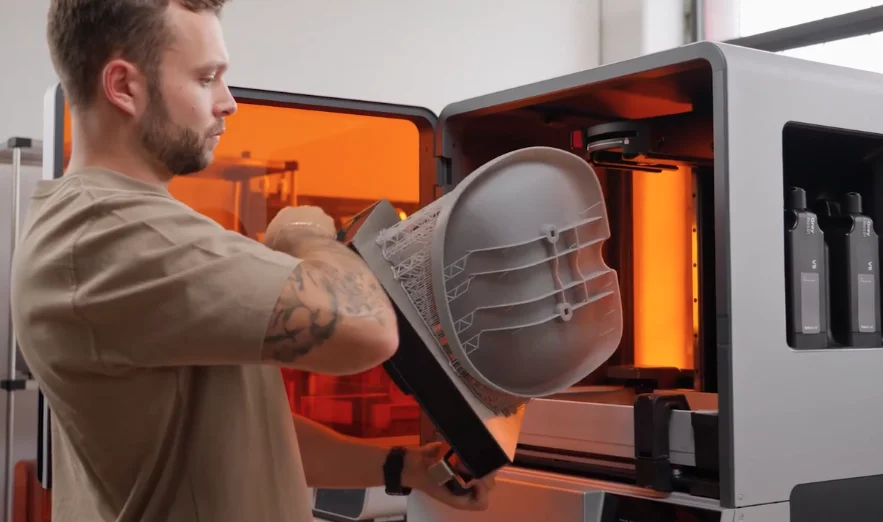

So intuitive that anyone can learn to print in 15 minutes.
01

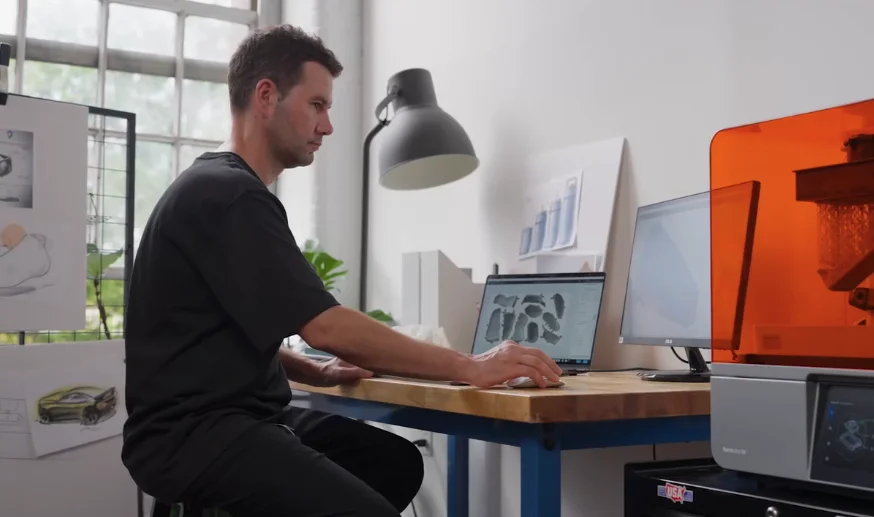

Import your model and prepare your print.
- Smart auto-orientation
- Advanced support generation
- Live printability checks
02

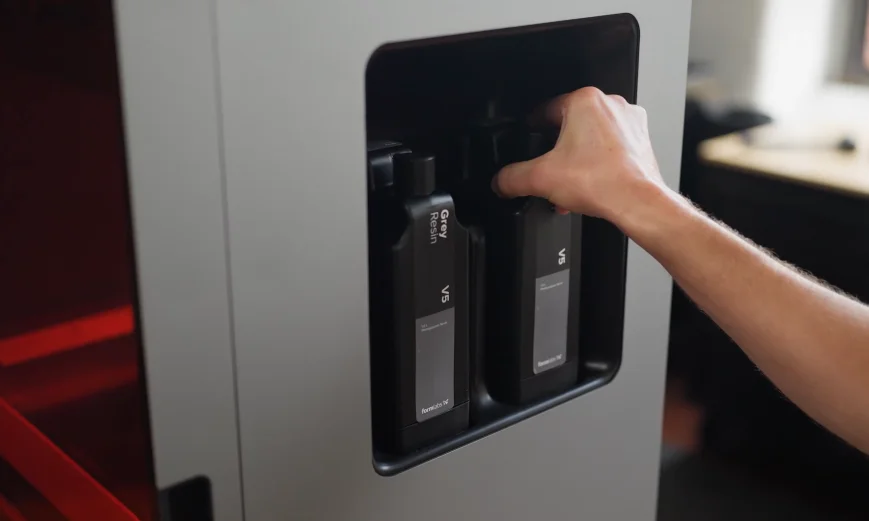

Load a material and click print.
- Validated print settings
- No-hassle cartridge and tanks
- Automatic resin dispensing
03

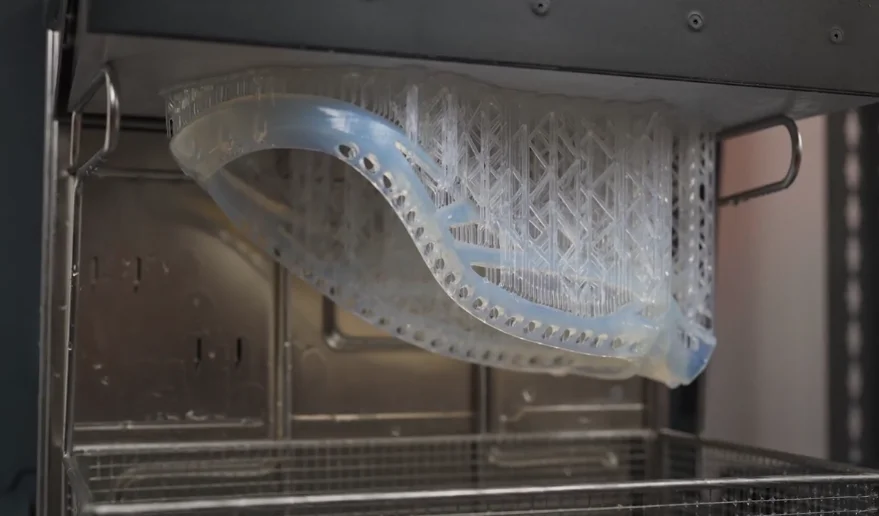

Remove, wash, cure.
- Quick release part removal
- Automatic part cleaning
- Precision post-curing for peak material properties
04

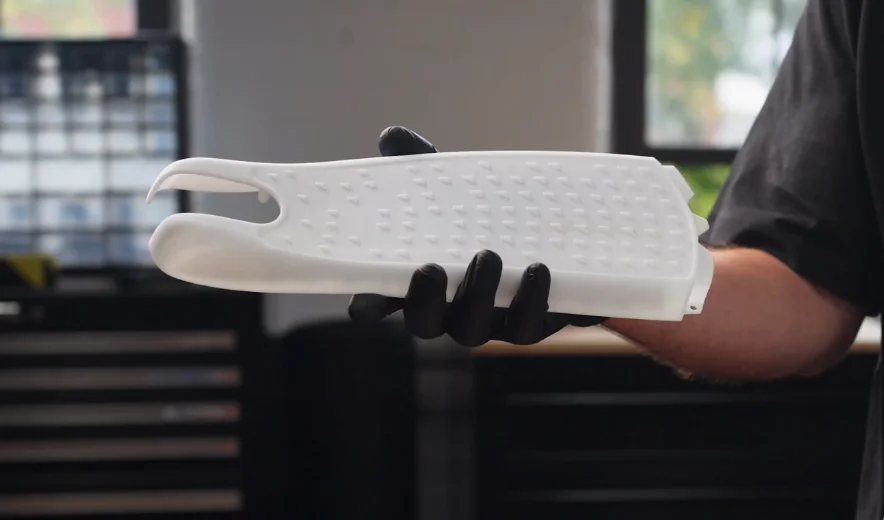

Finish your part.
- Light touch supports for quick, clean support removal
- Optional sanding, coating, or painting
How it works
So intuitive that anyone can learn to print in 15 minutes.
01
Import your model and prepare your print.
- Smart auto-orientation
- Advanced support generation
- Live printability checks
02
Load a material and click print.
- Validated print settings
- No-hassle cartridge and tanks
- Automatic resin dispensing
03
Remove, wash, cure.
- Quick release part removal
- Automatic part cleaning
- Precision post-curing for peak material properties
04
Finish your part.
- Light touch supports for quick, clean support removal
- Optional sanding, coating, or painting
Materials
23 industry-leading resins for every application.
Tough 2000 Resin V2
Color Resin
Clear Cast Resin
Grey Resin V5
Clear Resin V5
Tough 1500 Resin V2
Fast Model Resin
Rigid 10K Resin
Applications
Real world applications across industries.
Tough 1500 Resin
Pre-Production Validation
Forge Motorsport reverse-engineered an underperforming part, 3D printed a new design, and tested it on a vehicle for five months before committing to tooling.
Silicone Gaskets
Silicone 40A Resin
Side Mirrors
Clear Resin
Rapid Tooling
High Temp Resin
Carbon Fiber Molds
Tough 1500 Resin
Drone Parts
Tough 2000 Resin
Tooling for Escape Route Markings
Clear Resin
Wind Tunnel Test Parts
Rigid 10K Resin
Custom Antennas
Clear Resin (Electroplated)
Functional Prototypes
Grey Pro Resin
Silicone Prototypes
Silicone 40A Resin
Thermoforming Molds
Grey Resin
Test Fixtures
Tough 2000 Resin
Wash L & Cure L

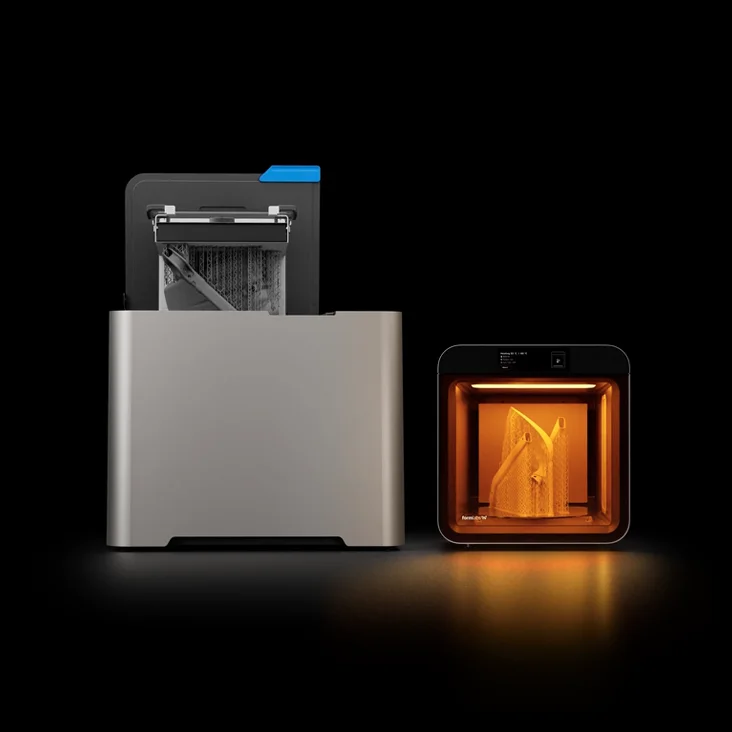

Fast, Clean SLA Post-Processing.
Form Wash L

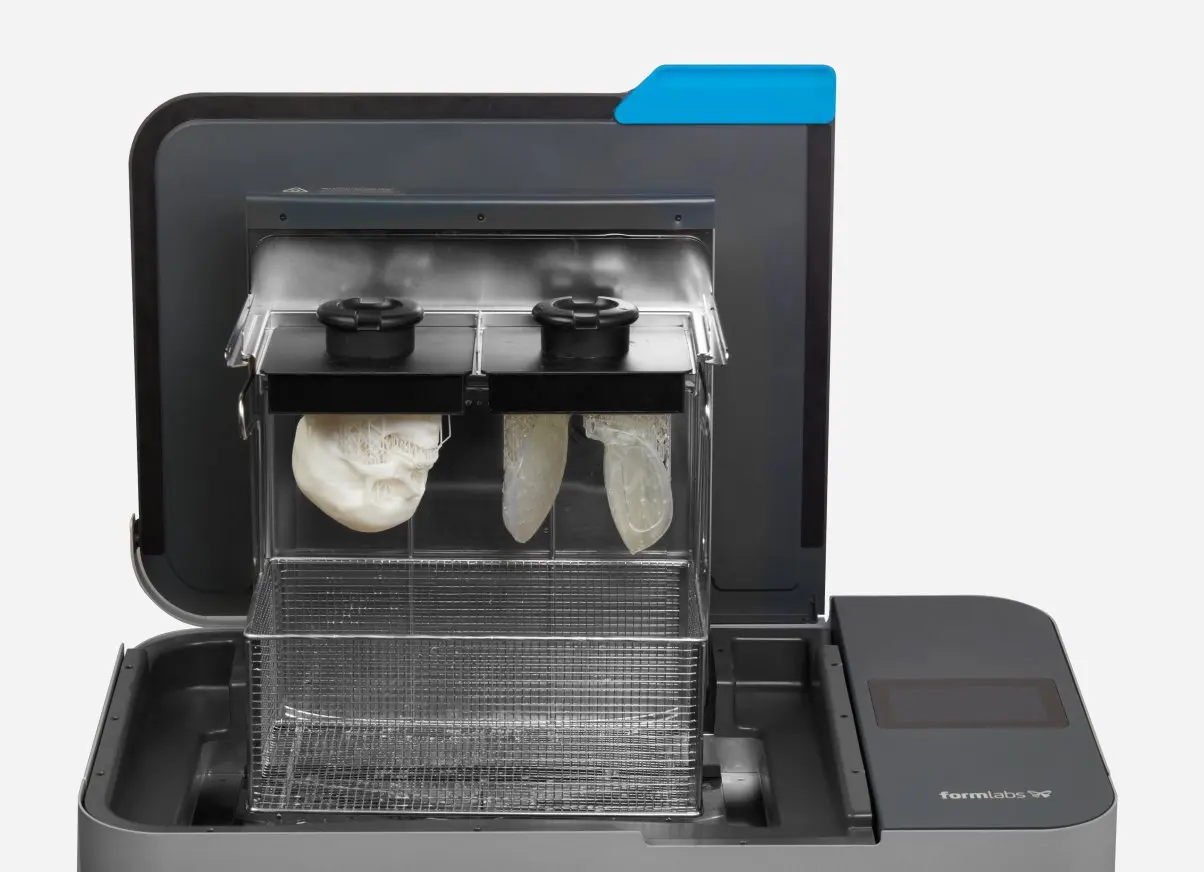

Automate Cleaning With Form Wash L
Use the pre-programmed wash settings or save your own frequently used custom profiles to improve post-processing efficiency.
Form Cure L

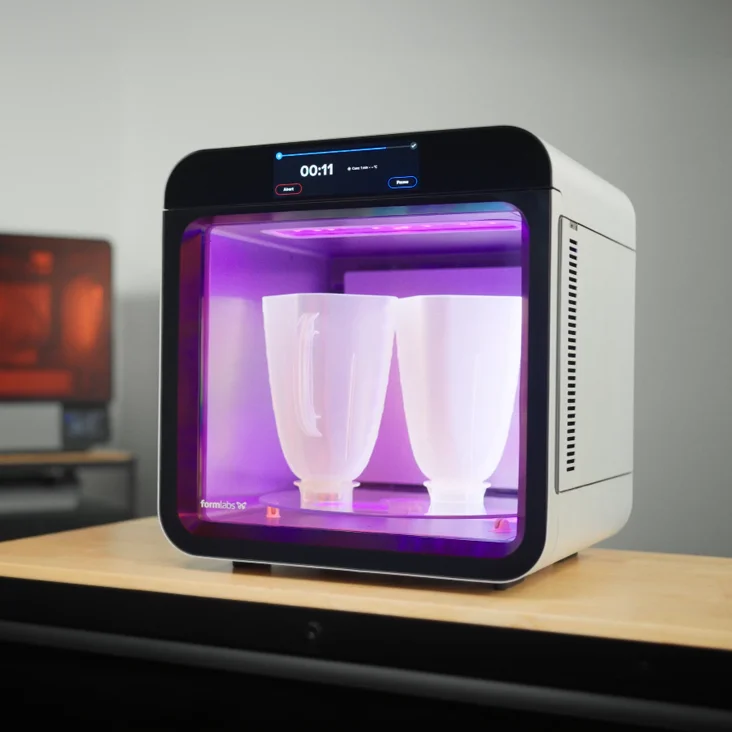

Post-Cure Most Large Resin Parts in 60 Seconds
Rapid curing and quick heat up for consistent, validated results and effortless post-curing of large resin 3D prints.
Wash L & Cure L
Fast, Clean SLA Post-Processing.
Form Wash L
Automate Cleaning With Form Wash L
Use the pre-programmed wash settings or save your own frequently used custom profiles to improve post-processing efficiency.
Form Cure L
Post-Cure Most Large Resin Parts in 60 Seconds
Rapid curing and quick heat up for consistent, validated results and effortless post-curing of large resin 3D prints.
Formlabs Software
3D Printing Setup, Management, and Monitoring Made Simple
Formlabs software solutions help you work more efficiently. Prepare your 3D models for printing with a few clicks, manage a single printer or an entire fleet from the cloud, and automate and optimize your workflow.

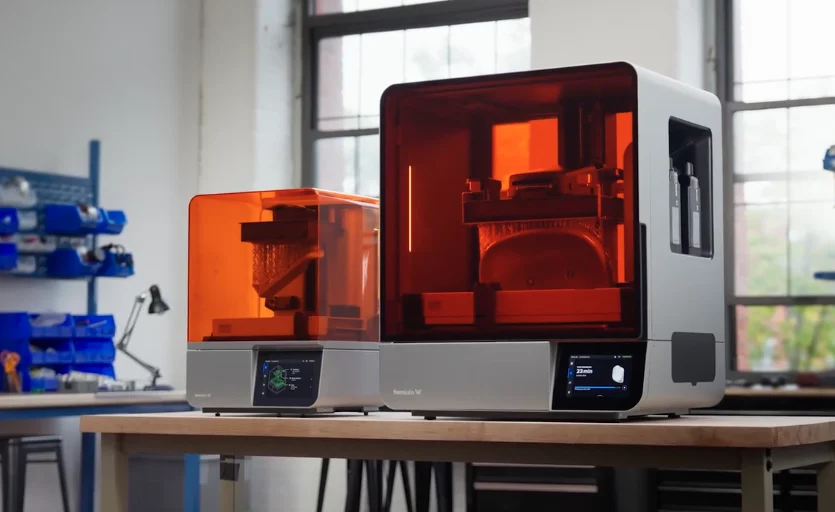

Get the Formlabs Form 4L
Experience large-format SLA printing at blazing speed. Get expert guidance on setup, resins, and the right workflow for your team.
