Key Features
Unprecedented print speeds. Print 11 dental models in 9 minutes.
Unrivaled accuracy that matches your commitment to a perfect fit, every time.
Open System
Blazing Fast
Unmatched Reliability
Absurdly Intuitive
Specs
Technical specifications
Technology
Masked Stereolithography (MSLA)
Printer Engine
Low Force Display™ (LFD)
Key Components
Backlight Unit Light Processing Unit 4 (LPU 4) Release Texture Flexible Film Resin Tank Intelligent Control Systems High-Speed Automatic Resin Handling
Light Source
Backlight Unit with integrated air cooling.
60 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling 405 nm optical wavelength 16 mW/cm² optical power intensity delivered to the cure plane 50 µm pixel size
Maximum Print Speed
Under optimal conditions.
100 mm/hour 3.9 in/hour
Typical Print Speed
Across all materials.
Average: 40 mm/hour (1.6 in/hour) Range: 16–50 mm/hour (0.6–2.0 in/hour)
Surface Accuracy (Restorative Models)
On average with Precision Model Resin.
99.7% of surfaces within 100 µm of CAD model 95% of surfaces within 50 µm of CAD model 69% of surfaces within 25 µm of CAD model
Typical Dimensional Tolerances (XY)
1–30 mm features: ±0.15% (min ±0.02 mm) 31–80 mm features: ±0.2% (min ±0.06 mm) 81–150 mm features: ±0.3% (min ±0.15 mm)
Reliability
Measured by an independent third-party lab.
98.7%
How it works

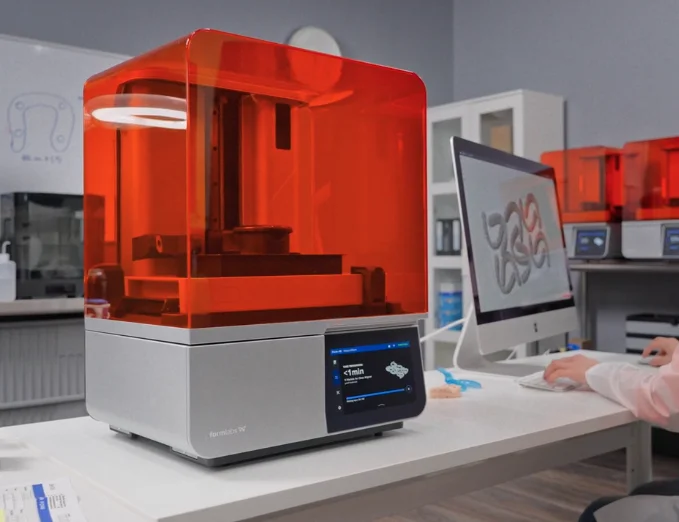

The intuitive workflow that transformed digital dentistry. Now up to 5x faster.
01

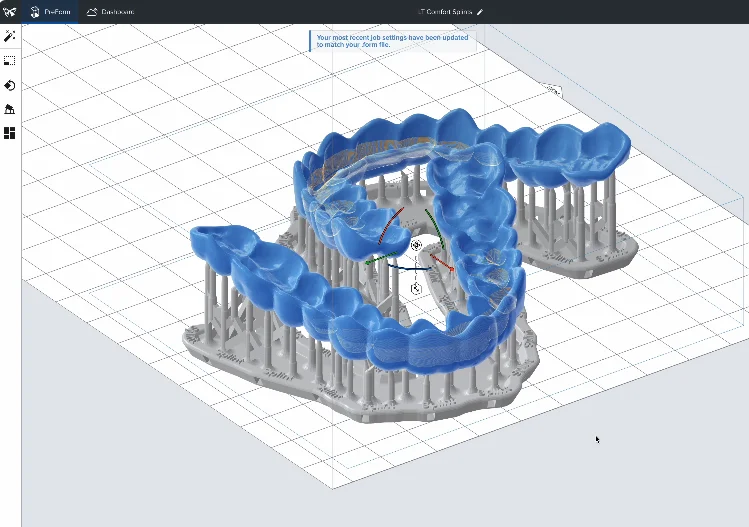

Import your model and prepare your print.
- Automatic print setup based on indication
- Convert scan files to 3D printable models with Scan to Model
- Seamless integration with scanners and CAD software
02
Load a material and click print.
- Validated print settings
- No-hassle cartridge and tanks
- Automatic resin dispensing
03
Remove, wash, cure.
- Quick release part removal
- Automatic part cleaning
- Fast post-curing with peak material properties
04

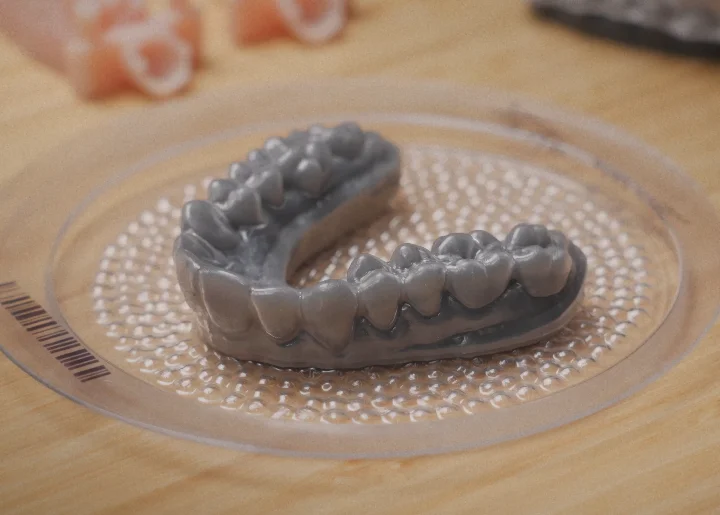

Finish your part.
- Light touch supports for quick, clean support removal
How it works
The intuitive workflow that transformed digital dentistry. Now up to 5x faster.
01
Import your model and prepare your print.
- Automatic print setup based on indication
- Convert scan files to 3D printable models with Scan to Model
- Seamless integration with scanners and CAD software
02
Load a material and click print.
- Validated print settings
- No-hassle cartridge and tanks
- Automatic resin dispensing
03
Remove, wash, cure.
- Quick release part removal
- Automatic part cleaning
- Fast post-curing with peak material properties
04
Finish your part.
- Light touch supports for quick, clean support removal
Materials
38 industry-leading resins including 15 biocompatible.
Precision Model Resin
Denture Base Resin
True Cast Resin
IBT Flex Resin
Dental LT Clear V2 Resin
Custom Tray Resin
Surgical Guide Resin
Premium Teeth Resin

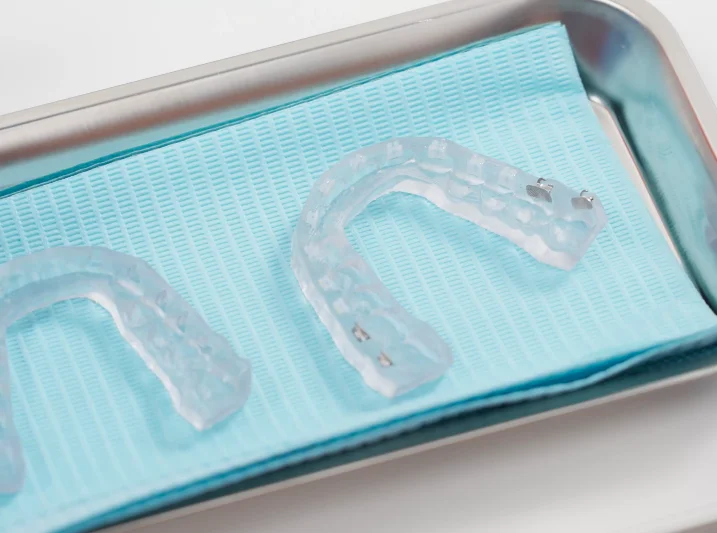

Applications
Effortlessly create parts for any dental application. Print any resin with Open Material Mode.
Wash & Cure
Fast, Clean SLA Post-Processing.
Form Wash
Effortless, Mess-Free Cleaning for Perfect Parts.
Form Wash and Form Wash L provide thorough cleaning with powerful agitation to ensure residual resin is completely removed. After the preset wash cycle, the parts are automatically lifted from the bath to air dry.

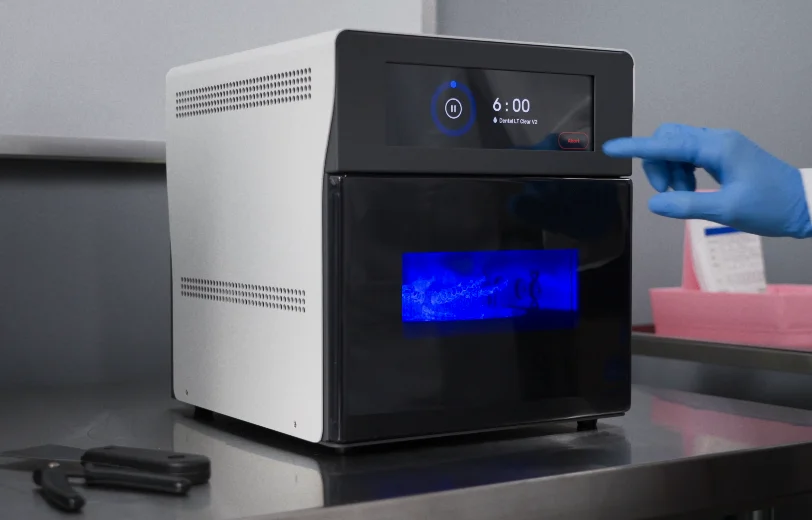

Form Cure
Optimal Material Properties in Record Time.
Form Cure and Form Cure L use powerful LEDs, convective heating, and validated presets to achieve optimal mechanical properties with speed and precision.
Wash & Cure
Fast, Clean SLA Post-Processing.
Form Wash
Effortless, Mess-Free Cleaning for Perfect Parts.
Form Wash and Form Wash L provide thorough cleaning with powerful agitation to ensure residual resin is completely removed. After the preset wash cycle, the parts are automatically lifted from the bath to air dry.
Form Cure
Optimal Material Properties in Record Time.
Form Cure and Form Cure L use powerful LEDs, convective heating, and validated presets to achieve optimal mechanical properties with speed and precision.
Formlabs Software
3D Printing Setup, Management, and Monitoring Made Simple
Formlabs software solutions help you work more efficiently. Prepare your 3D models for printing with a few clicks, manage a single printer or an entire fleet from the cloud, and automate and optimize your workflow.
Get the Formlabs Form 4B
Experience industrial-quality SLA printing with an open material system and proven reliability. Get expert guidance on setup, resins, and the right workflow for your team.
Get in touch
